WebRTC

とあるサイトで簡単に実験できる情報が記載されていたので、半信半疑ながら試す

ベースとする環境

OS

CentOS 64bit

Webアプリサーバ

dev.webrtc.com

シグナリングサーバ

192.168.51.129:9001

TURNサーバ

なし

手順

環境

[root@localhost ~]# node -v
v0.10.25
[root@localhost ~]# npm -v
1.3.24
[root@localhost ~]#

socketioをインストール

[root@localhost ~]# mkdir node_sample1
[root@localhost ~]# cd node_sample1/
[root@localhost node_sample1]# npm install socket.io

たくさんの関連モジュールをダウンロードしてインストールする

[root@localhost node_sample1]#

socket.ioを使用してシグナリングサーバを作成

var port = 9001;
var io = require('socket.io').listen(port);
console.log((new Date()) + " Server is listening on port " + port);

io.sockets.on('connection', function(socket) {
  socket.on('message', function(message) {
    socket.broadcast.emit('message', message);
  });

  socket.on('disconnect', function() {
    socket.broadcast.emit('user disconnected');
  });
});

nodejsを起動

[root@localhost node_sample1]# node signaling.js
   info  - socket.io started
Mon Mar 31 2014 19:33:46 GMT+0900 (JST) Server is listening on port 9001

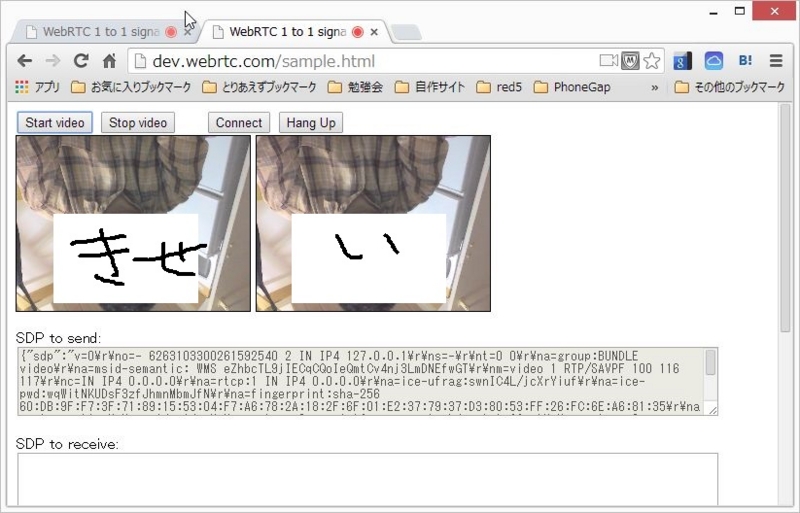

別途Webサーバのアクセスとして、sample.htmlを作成

<!DOCTYPE html>
<html>
<head>
  <title>WebRTC 1 to 1 signaling</title>
</head>
<body>
  <button type="button" onclick="startVideo();">Start video</button>
  <button type="button" onclick="stopVideo();">Stop video</button>
  &nbsp;&nbsp;&nbsp;&nbsp;
  <button type="button" onclick="connect();">Connect</button>
  <button type="button" onclick="hangUp();">Hang Up</button>
  <br />
  <div>
   <video id="local-video" autoplay style="width: 240px; height: 180px; border: 1px solid black;"></video>
   <video id="remote-video" autoplay style="width: 240px; height: 180px; border: 1px solid black;"></video>
  </div>

  <p>
   SDP to send:<br />
   <textarea id="text-for-send-sdp" rows="5" cols="100" disabled="1">SDP to send</textarea>
  </p>
  <p>
   SDP to receive:<br />
   <textarea id="text-for-receive-sdp" rows="5" cols="100"></textarea><br />
   <button type="button" onclick="onSDP();">Receive SDP</button>
  </p>

  <p>
   ICE Candidate to send:<br />
   <textarea id="text-for-send-ice" rows="5" cols="100" disabled="1">ICE Candidate to send</textarea>
  </p>
  <p>
   ICE Candidates to receive:<br />
   <textarea id="text-for-receive-ice" rows="5" cols="100"></textarea><br />
   <button type="button" onclick="onICE();">Receive ICE Candidates</button>
  </p>

  <!---- socket ------>
  <script src="http://192.168.51.129:9001/socket.io/socket.io.js"></script>

  <script>
  var localVideo = document.getElementById('local-video');
  var remoteVideo = document.getElementById('remote-video');
  var localStream = null;
  var peerConnection = null;
  var peerStarted = false;
  var mediaConstraints = {'mandatory': {'OfferToReceiveAudio':false, 'OfferToReceiveVideo':true }};


  // ---- socket ------
  // create socket
  var socketReady = false;
  var port = 9001;
  var socket = io.connect('http://192.168.51.129:' + port + '/');
  // socket: channel connected
  socket.on('connect', onOpened)
        .on('message', onMessage);

  function onOpened(evt) {
    console.log('socket opened.');
    socketReady = true;
  }

  // socket: accept connection request
  function onMessage(evt) {
    if (evt.type === 'offer') {
      console.log("Received offer, set offer, sending answer....")
      onOffer(evt);
    } else if (evt.type === 'answer' && peerStarted) {
      console.log('Received answer, settinng answer SDP');
          onAnswer(evt);
    } else if (evt.type === 'candidate' && peerStarted) {
      console.log('Received ICE candidate...');
          onCandidate(evt);
    } else if (evt.type === 'user dissconnected' && peerStarted) {
      console.log("disconnected");
      stop();
    }
  }



  // ----------------- handshake --------------
  var textForSendSDP = document.getElementById('text-for-send-sdp');
  var textForSendICE = document.getElementById('text-for-send-ice');
  var textToReceiveSDP = document.getElementById('text-for-receive-sdp');
  var textToReceiveICE = document.getElementById('text-for-receive-ice');
  var iceSeparator = '------ ICE Candidate -------';
  var CR = String.fromCharCode(13);

  function onSDP() {
    var text = textToReceiveSDP.value;
        var evt = JSON.parse(text);
        if (peerConnection) {
          onAnswer(evt);
        }
        else {
          onOffer(evt);
        }

        textToReceiveSDP.value ="";
  }

  //--- multi ICE candidate ---
  function onICE() {
    var text = textToReceiveICE.value;
        var arr = text.split(iceSeparator);
        for (var i = 1, len = arr.length; i < len; i++) {
      var evt = JSON.parse(arr[i]);
          onCandidate(evt);
    }

        textToReceiveICE.value ="";
  }


  function onOffer(evt) {
    console.log("Received offer...")
        console.log(evt);
    setOffer(evt);
        sendAnswer(evt);
        peerStarted = true;  // ++
  }

  function onAnswer(evt) {
    console.log("Received Answer...")
        console.log(evt);
        setAnswer(evt);
  }

  function onCandidate(evt) {
    var candidate = new RTCIceCandidate({sdpMLineIndex:evt.sdpMLineIndex, sdpMid:evt.sdpMid, candidate:evt.candidate});
    console.log("Received Candidate...")
        console.log(candidate);
    peerConnection.addIceCandidate(candidate);
  }

  function sendSDP(sdp) {
    var text = JSON.stringify(sdp);
        console.log("---sending sdp text ---");
        console.log(text);
        textForSendSDP.value = text;

        // send via socket
        socket.json.send(sdp);
  }

  function sendCandidate(candidate) {
    var text = JSON.stringify(candidate);
        console.log("---sending candidate text ---");
        console.log(text);
        textForSendICE.value = (textForSendICE.value + CR + iceSeparator + CR + text + CR);
        textForSendICE.scrollTop = textForSendICE.scrollHeight;

        // send via socket
        socket.json.send(candidate);
  }

  // ---------------------- video handling -----------------------
  // start local video
  function startVideo() {
        navigator.webkitGetUserMedia({video: true, audio: false},
    function (stream) { // success
      localStream = stream;
      localVideo.src = window.webkitURL.createObjectURL(stream);
      localVideo.play();
          localVideo.volume = 0;
    },
    function (error) { // error
      console.error('An error occurred: [CODE ' + error.code + ']');
      return;
    }
        );
  }

  // stop local video
  function stopVideo() {
    localVideo.src = "";
    localStream.stop();
  }

  // ---------------------- connection handling -----------------------
  function prepareNewConnection() {
    var pc_config = {"iceServers":[]};
    var peer = null;
    try {
      peer = new webkitRTCPeerConnection(pc_config);
    } catch (e) {
      console.log("Failed to create peerConnection, exception: " + e.message);
    }

    // send any ice candidates to the other peer
    peer.onicecandidate = function (evt) {
      if (evt.candidate) {
        console.log(evt.candidate);
        sendCandidate({type: "candidate",
                          sdpMLineIndex: evt.candidate.sdpMLineIndex,
                          sdpMid: evt.candidate.sdpMid,
                          candidate: evt.candidate.candidate}
                );
      } else {
        console.log("End of candidates. ------------------- phase=" + evt.eventPhase);
      }
    };

    console.log('Adding local stream...');
    peer.addStream(localStream);

    peer.addEventListener("addstream", onRemoteStreamAdded, false);
    peer.addEventListener("removestream", onRemoteStreamRemoved, false)

    // when remote adds a stream, hand it on to the local video element
    function onRemoteStreamAdded(event) {
      console.log("Added remote stream");
      remoteVideo.src = window.webkitURL.createObjectURL(event.stream);
    }

    // when remote removes a stream, remove it from the local video element
    function onRemoteStreamRemoved(event) {
      console.log("Remove remote stream");
      remoteVideo.src = "";
    }

    return peer;
  }

  function sendOffer() {
    peerConnection = prepareNewConnection();
    peerConnection.createOffer(function (sessionDescription) { // in case of success
      peerConnection.setLocalDescription(sessionDescription);
      console.log("Sending: SDP");
      console.log(sessionDescription);
      sendSDP(sessionDescription);
    }, function () { // in case of error
      console.log("Create Offer failed");
    }, mediaConstraints);
  }

  function setOffer(evt) {
    if (peerConnection) {
          console.error('peerConnection alreay exist!');
        }
    peerConnection = prepareNewConnection();
    peerConnection.setRemoteDescription(new RTCSessionDescription(evt));
  }

  function sendAnswer(evt) {
    console.log('sending Answer. Creating remote session description...' );
        if (! peerConnection) {
          console.error('peerConnection NOT exist!');
          return;
        }

    peerConnection.createAnswer(function (sessionDescription) { // in case of success
      peerConnection.setLocalDescription(sessionDescription);
      console.log("Sending: SDP");
      console.log(sessionDescription);
      sendSDP(sessionDescription);
    }, function () { // in case of error
      console.log("Create Answer failed");
    }, mediaConstraints);
  }

  function setAnswer(evt) {
    if (! peerConnection) {
          console.error('peerConnection NOT exist!');
          return;
        }
        peerConnection.setRemoteDescription(new RTCSessionDescription(evt));
  }

  // -------- handling user UI event -----
  // start the connection upon user request
  function connect() {
    if (!peerStarted && localStream && socketReady) { // **
        //if (!peerStarted && localStream) { // --
      sendOffer();
      peerStarted = true;
    } else {
      alert("Local stream not running yet - try again.");
    }
  }

  // stop the connection upon user request
  function hangUp() {
    console.log("Hang up.");
    stop();
  }

  function stop() {
    peerConnection.close();
    peerConnection = null;
    peerStarted = false;
  }

  </script>
</body>
</html>
